New Construction

Building a new home is the perfect time to add a pre-wire design to your floor plan.   Pre-wiring your home with a structured wire network now will enable you to keep up with changing technology without having to re-wire in the future.

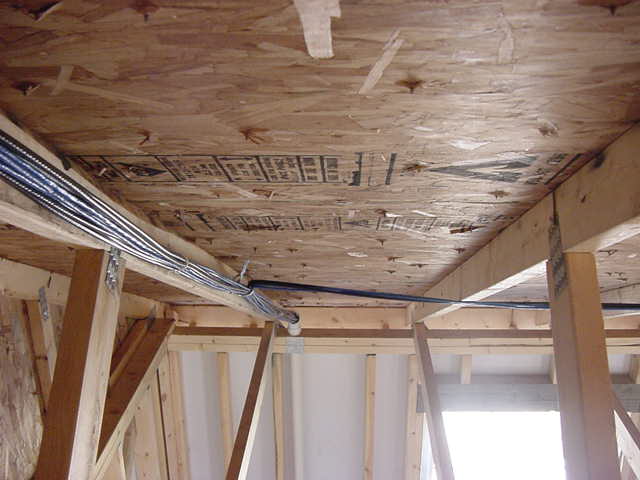

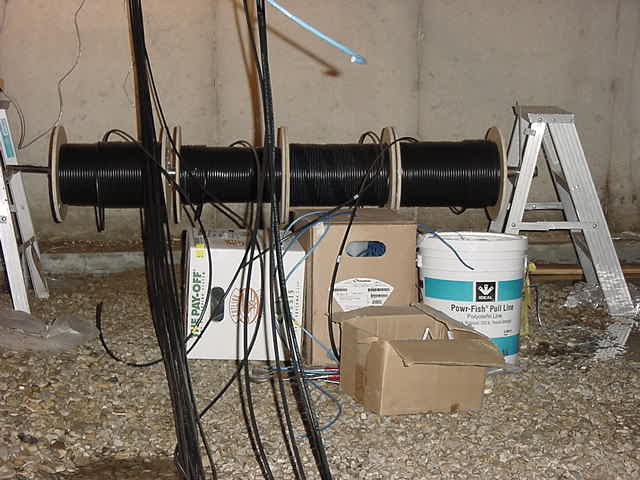

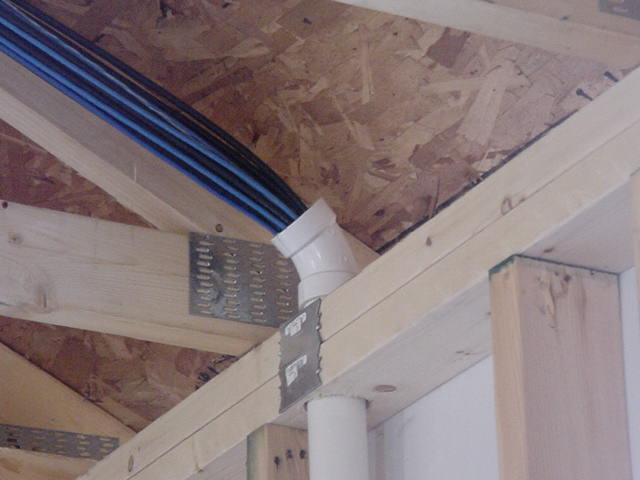

Pre-wiring

To avoid having to add or re-cable in the future we recommend each of  your structured wire outlets consist of (2) CAT 5E and (2) RG6 cables.  If you anticipate having an entertainment center or satellite TV you should plan on having an extra phone line installed to order "pay per view".  Also keep in mind to install adequate lightning protection.  These are just a couple of suggestions we will go over with you when we design your structured wire network.

Click Pictures to enlarge

Power Requirements

The structured wire network outlets themselves do not require power,  however many of the products you connect to them do.  Pre-planning the location of wall outlets close to electrical outlets will prevent the need for extension cords.  The distribution panel will require power only if you plan on having a router, telephone system, security panel or DVD/Video player.  A licensed electrician will be needed to install a 120VAC (60Hz grounded) outlet to a dedicated 15 amp breaker.

Scheduling

After the plumber and electrician have completed their initial installs we can coordinate directly through you or your  builder to allow enough time to finish the pre-wire portion of the structured wire network.  The pre-wiring should take between 8-16 hours.  This must be completed before the dry wall goes up.

Terminating Outlets

Once the dry wall is completed we will come back to terminate all structured wire network outlets and the distribution panel.  After the cables are terminated we will label and test all locations.  Clear, easy to follow labeling at the distribution panel and wall outlets will make it very easy to connect different devices in the future.

Guarantee

We test all cables in the structured wire network to guarantee they are functioning properly and do not exceed the length requirements in accordance with the ANSI TIA/EIA-570-A "Residential Telecommunications Cabling Standard".  We also perform a TIA Certification test for computer network cables.
